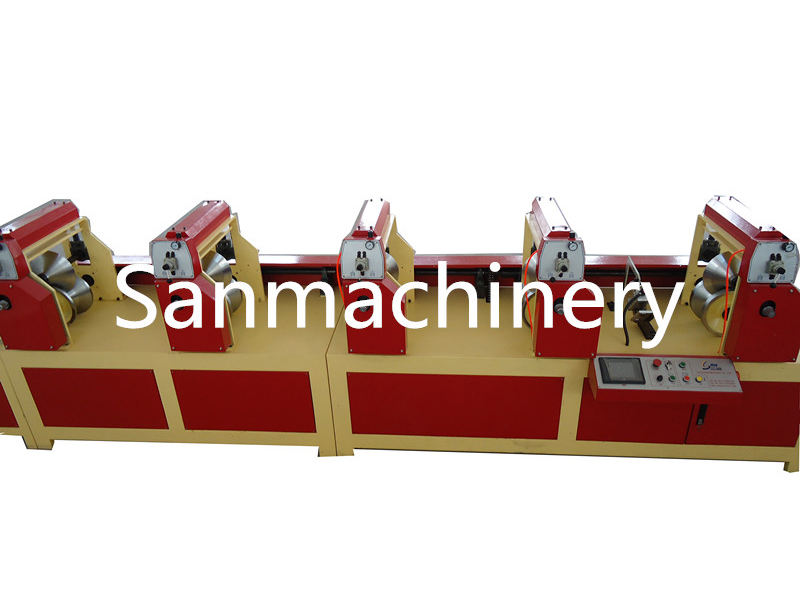

Double-Purpose Paper Edge Protector Machine

SANPPL-120DL is a regular machine, by changing molds, it can produce U shape and flat board. Max. speed is 30m/min. Applicable inner paper is 360g-600g bobbin fiber paper. The surface paper applicable is 175g-250g kraft paper.13 layers including 1 layer surface paper.

Get a Quote

Products

No.33 Lianyungang Road, Qingdao, China
Email: davidgong@sanmachinery.com
Tel: +86-532-55570881
Free Quote

Specifications
Advantages
Details

Specifications of Double-Purpose Paper Edge Protector Machine

Model	SANPPL-120DL
Paper protector production speed	0~30m/min
Size of paper protector	30~100mm
Thickness	2~8mm
Quantity of layer	13 layers (including 1 layer surface paper)
Cutting mode	driven by servo motor
Cutter number	single blade
Paper stands	Composite paper stands

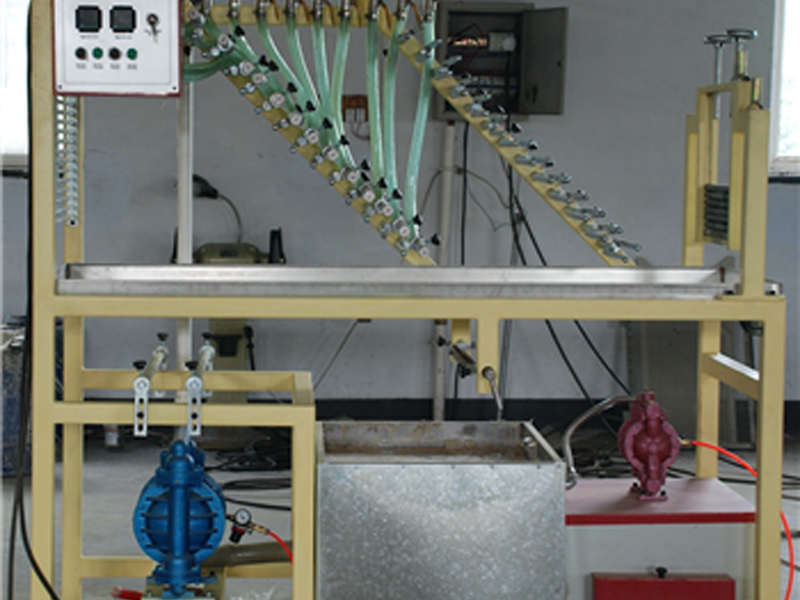

Gluing system	single/double side gluing system

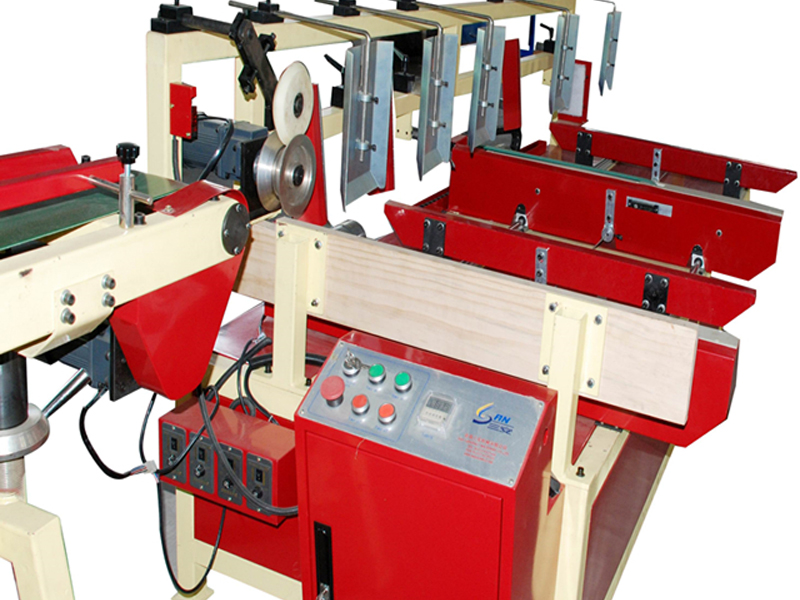

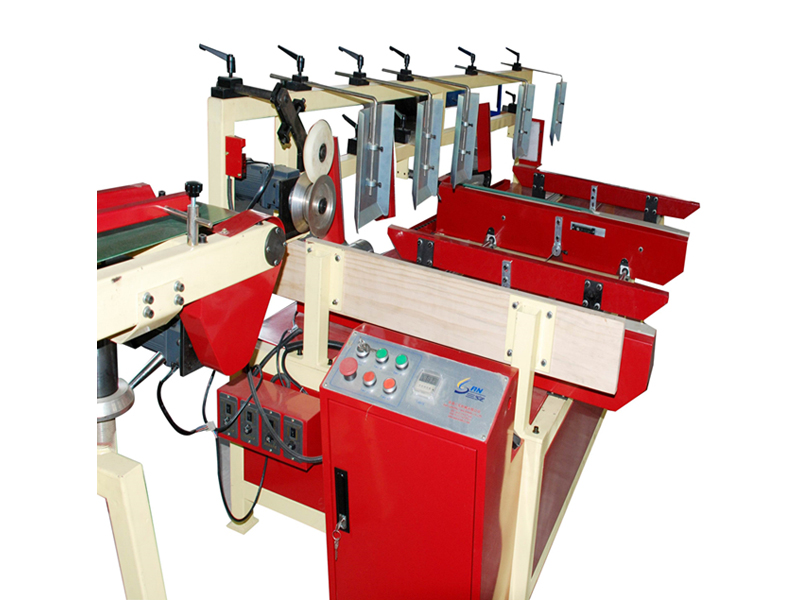

Collecting table	automatic

Advantages of Double-Purpose Paper Edge Protector Machine

Produce different shapes of paper protector by changing molds.
Pneumatic press system, easy to change molds.
Touch screen and HMI servo system, the operation is more humanized. Adjust air cylinder is more convenient.
Automatic alarming, malfunction prompt, easy to adjust and maitain.

Details of Double-Purpose Paper Edge Protector Machine

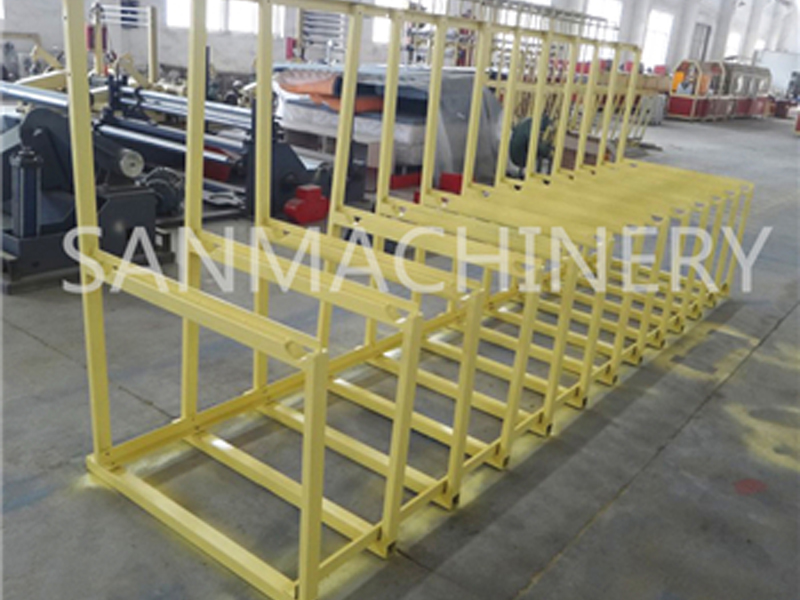

Composite paper stands, hoist can be added. it's convenient to load paper rolls.

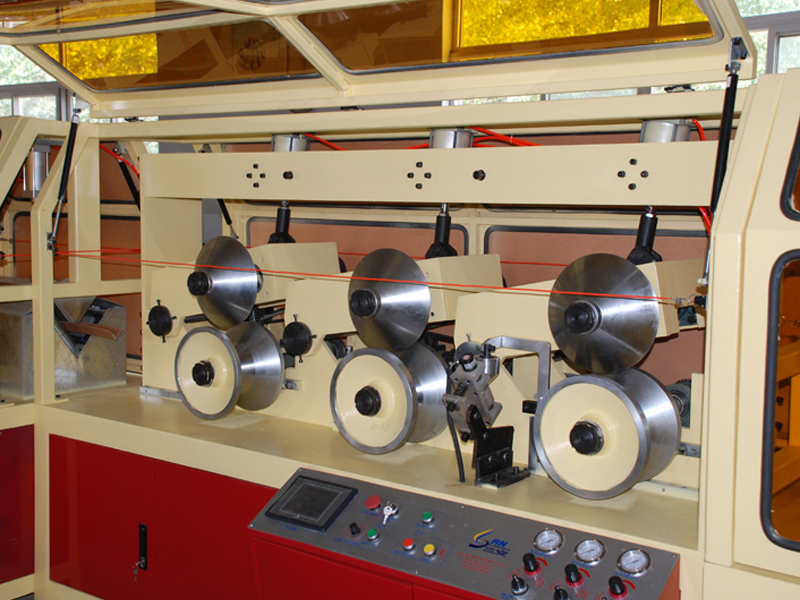

With pneumatic pressing system, it's easy to change molds. by changing different molds, it can produce various shapes edge protectors.

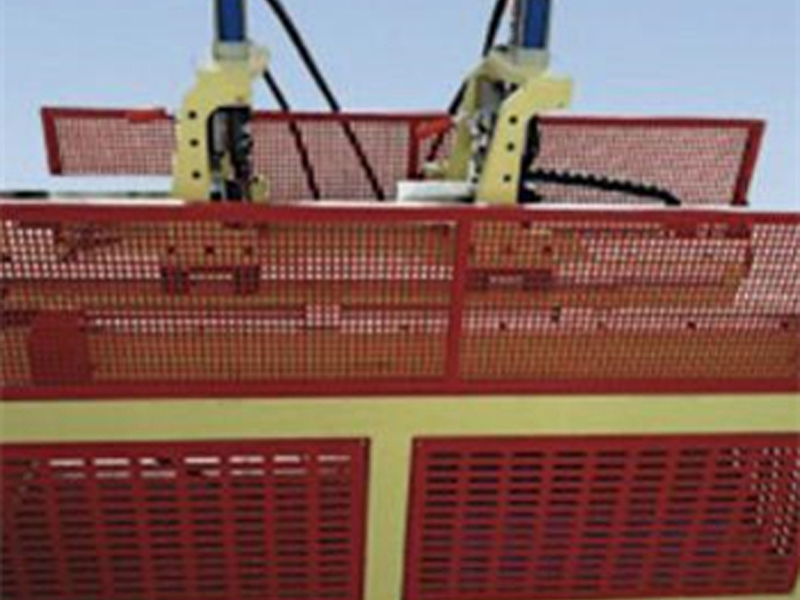

Double groups hydraulic cutting system, higher frequency, the max. Frequency is 80 times/min.
