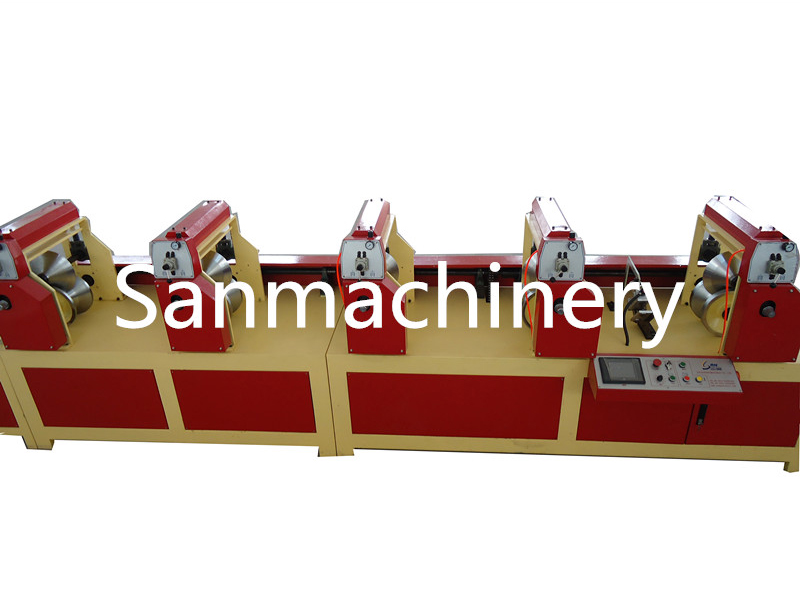

Normal Speed Paper Angle Protector Machine

Paper protector / edge protector / paper edge / edge board / corner board / angle board / edge board protectors / edge protection board are the right solution to prevent your products from damage during handling, storage and transportation. As the leading producer and supplier for paper edge protector machines in China and in the world, since 2001, we have supplied about 120 sets to Chinese market and about 50 sets to international market of Chile, Indonesia, Poland, Italy, Argentina, Slovakia, Czech, Egypt, Mexico, Hungary, Croatia, COTE D'IVOIRE, Kenya, USA, Vietnam, Thailand, Philippine, Macedonia, Colombia, Turkey, South Africa, South Korea, UAE, India, etc.

Get a Quote

Products

No.33 Lianyungang Road, Qingdao, China
Email: davidgong@sanmachinery.com
Tel: +86-532-55570881
Free Quote

Specifications
Advantages
Details

Specifications of Normal Speed Paper Angle Protector Machine

Paper protector production speed	0~45m/min
Size of paper protector	30~100mm
Thickness	2~8mm
Quantity of layer	13 layers
Cutting mode	driven by servo motor
Cutter number	single blade
Paper stands	Composite paper stands
Gluing system	single/double side gluing system
Collecting table	automatic

Advantages of Normal Speed Paper Angle Protector Machine

Composite paper stands, hoist can be added.

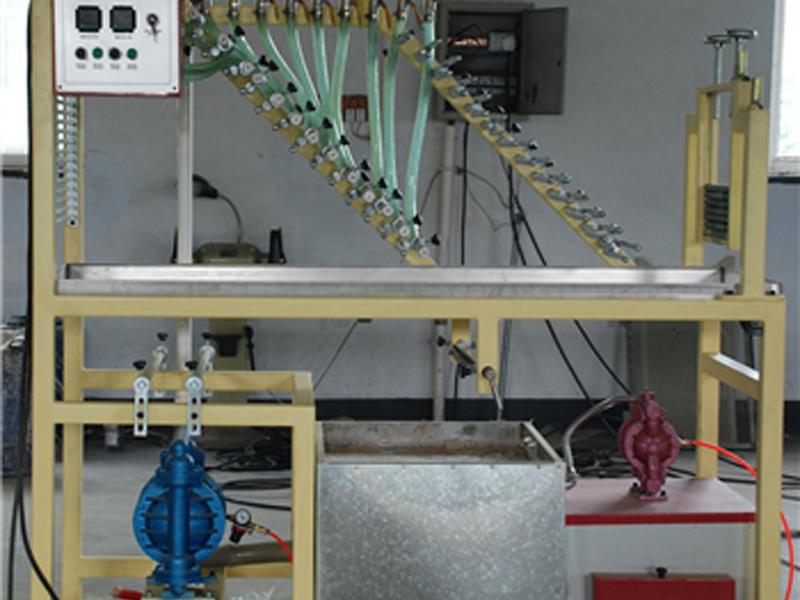

Double surface gluing system, quantify the glue automatically.
Produce different shapes of paper protector by changing molds.
Pneumatic press system, easy to change molds.

Details of Normal Speed Paper Angle Protector Machine

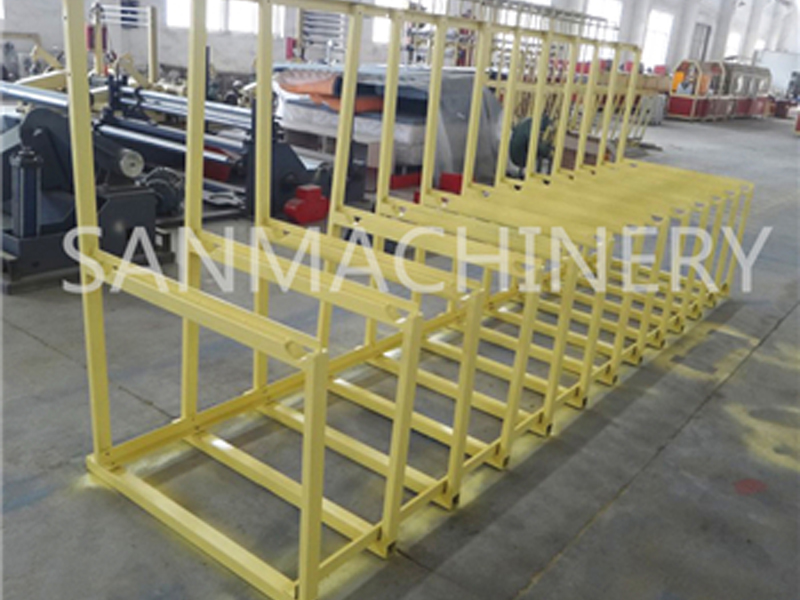

Composite paper stands, hoist can be added. it's convenient to load paper rolls.

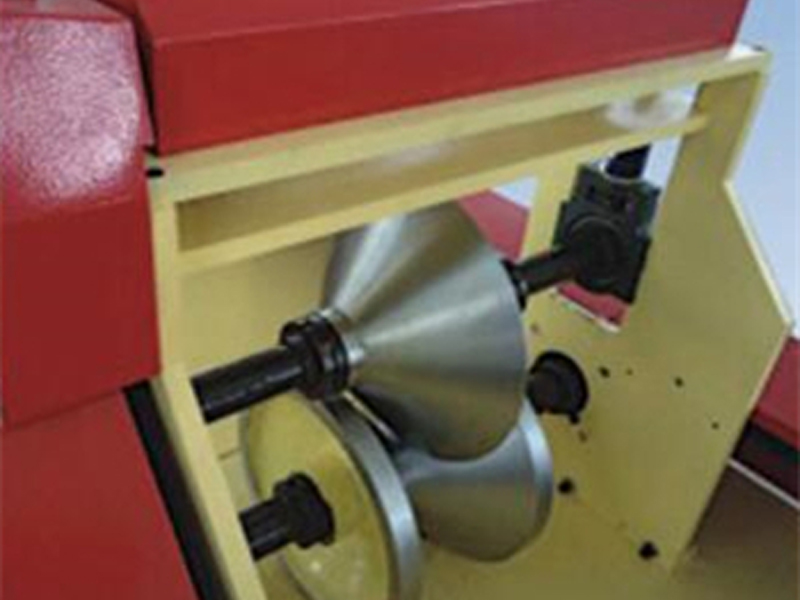

with pneumatic pressing system, it's easy to change molds.

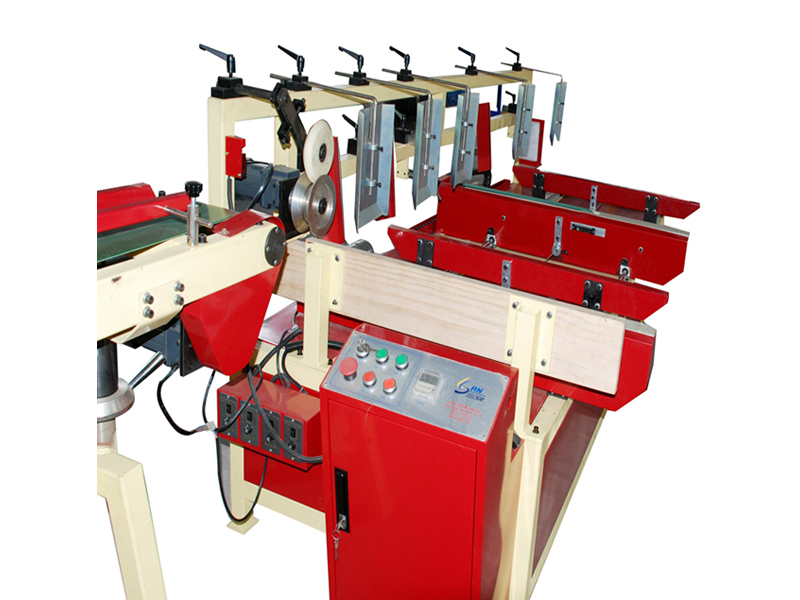

double groups hydraulic cutting system, higher frequency, the max. frequency is 80 times/min.
