Paper Board Making Machine

The paper board making machine is designed for the paper slip sheet production. This is the latest developed paper sheet production line. SANPPL-1200F line is to produce slip sheets/flat paper boards with thickness of max.5mm and width of max.1200mm. It adopts electric control system to guarantee stable speed of 20m/min. It has drying system to dry the cardboard.

Get a Quote

Products

No.33 Lianyungang Road, Qingdao, China
Email: davidgong@sanmachinery.com
Tel: +86-532-55570881
Free Quote

Specifications
Advantages
Details

Specifications of Paper Board Making Machine

Model	SANPPL-1200F
Max. board width size	1200mm
Min. board width	500mm
Thickness	≦5mm
Max. quantity of layer	4
Max. speed	20m/min
Paper stands	Hydraulic paper stands without spindle
Applicable glue	PVA glue
Drying system	yes
Winding system	Automatic winding system
Control system	PLC, servo motor, touch screen, inverter
Quantity of cutter	1 set
Min. cutting length	350mm
Cutting tolerance	±1.5mm
Cutting system	Automatic hydraulic cutting system
Longitudinal cutting	4 knives, can modify the edges
Main motor power supply	380V, 50HZ, 3 phase
Total weight	about 6.5MT
Dimension(m)	33×3×1.8m (including dryer)
Operator	2-3 persons

Advantages of Paper Board Making Machine

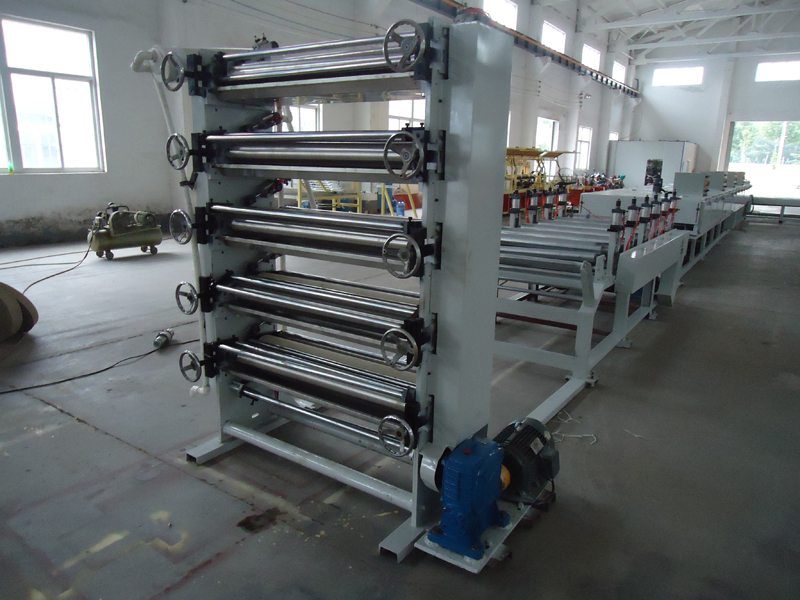

Automatic hydraulic paper stands without spindle.

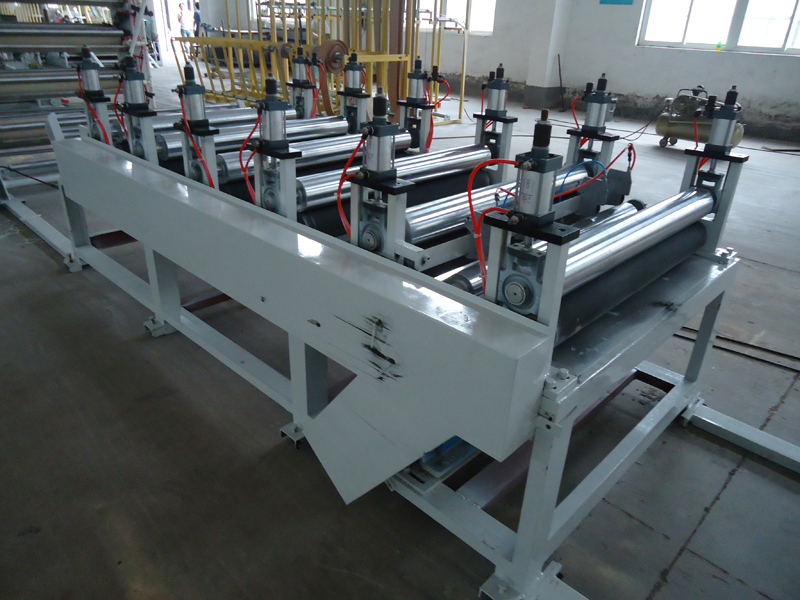

Roller gluing system.

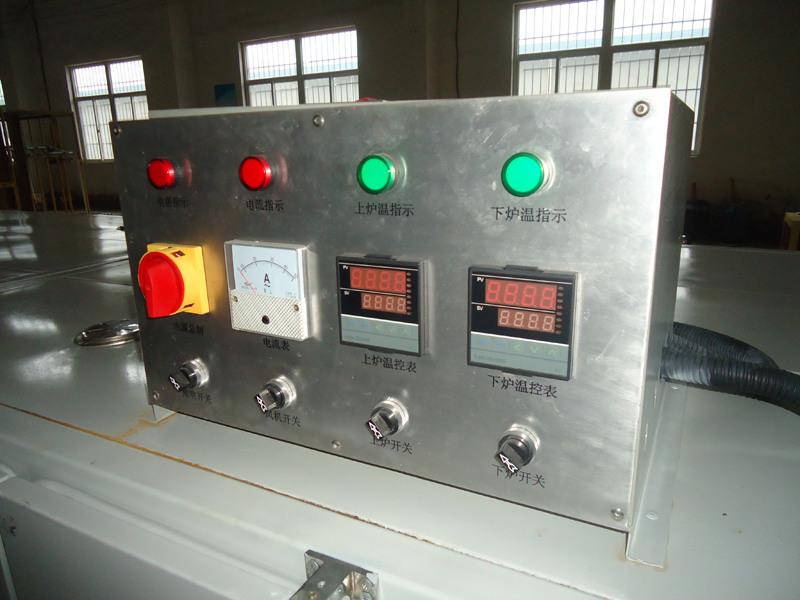

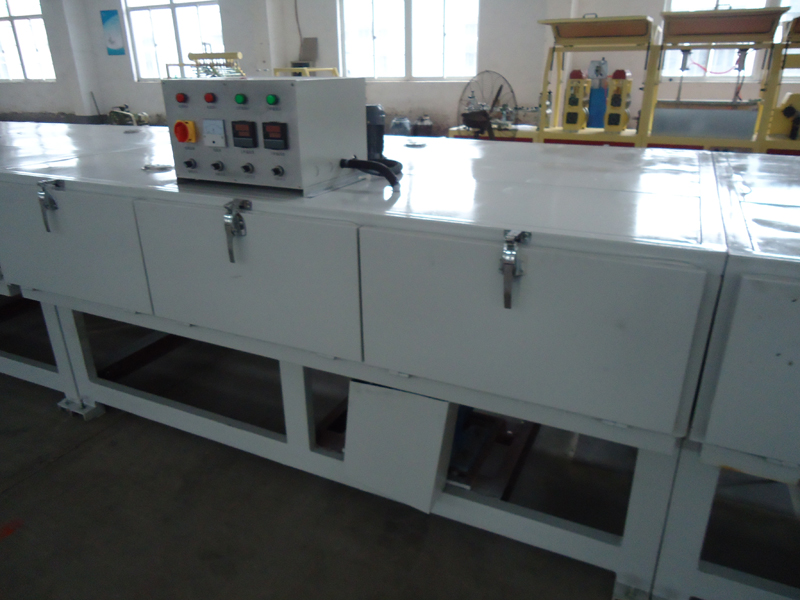

With energy-saving and hot-air circulation system, can adjust temperature of the air.

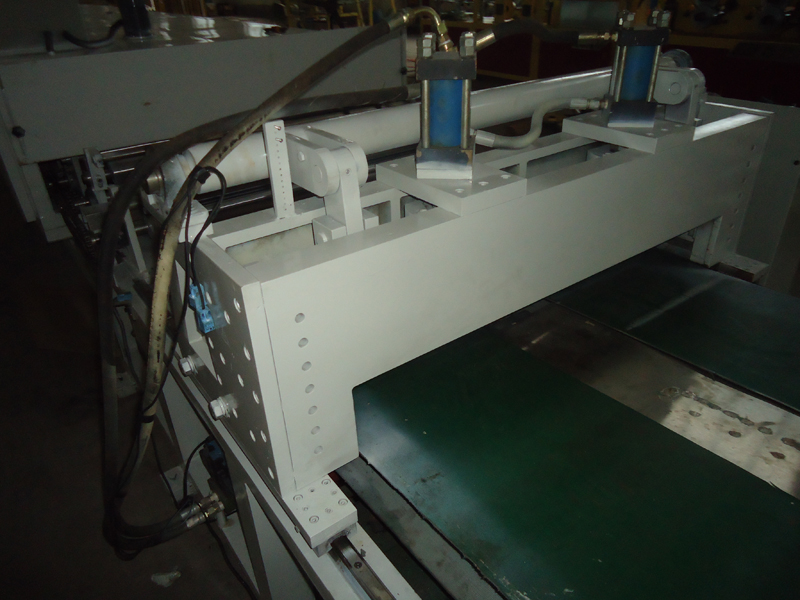

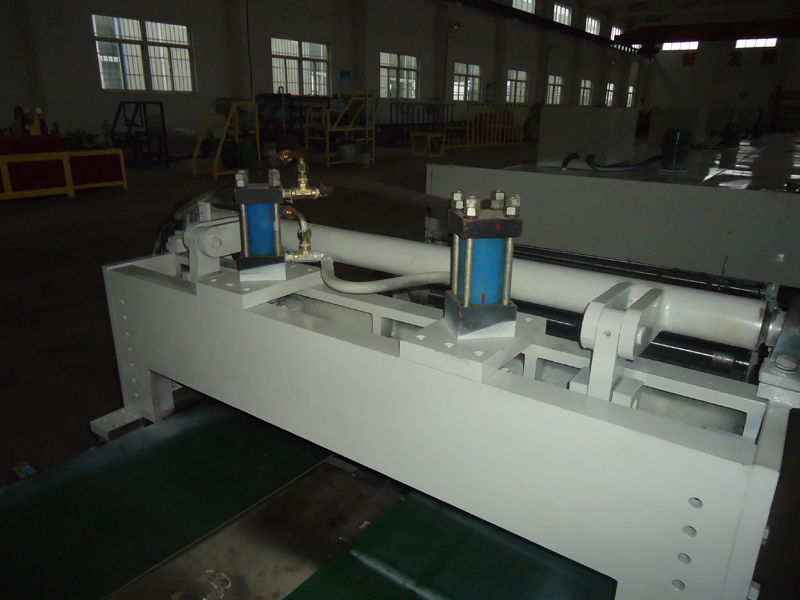

Automatic hydraulic cutting system, 4 knives, can adjust the width of the smaller belt.

Details of Paper Board Making Machine
