Paper Edge Protector Die Notching Machine

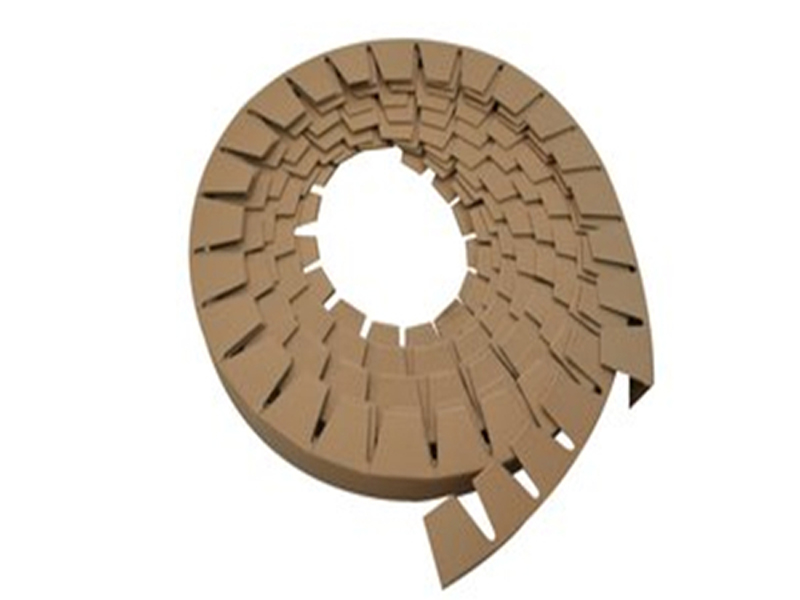

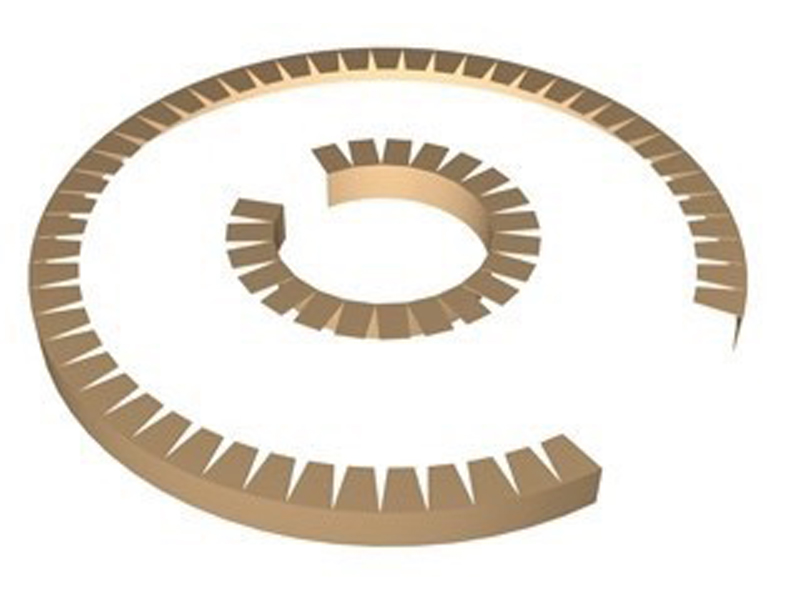

Paper protector flexo die cutting machine is to make V cut for outer round protector and line cut for inner round protector. Protector feeding is by hand.

Get a Quote

Products

No.33 Lianyungang Road, Qingdao, China
Email: davidgong@sanmachinery.com
Tel: +86-532-55570881
Free Quote

Specifications
Advantages
Details

Specifications of Paper Edge Protector Die Notching Machine

Model	SANGD-120
Protector size	25-100mm
Protector thickness	2-6mm
Production speed	0-70m/min
Cut quantity	1-24/meter
Power supply	2.2kw, 380v, 50Hz
Dimension	130010001600mm
Weight	550KG

Advantages of Paper Edge Protector Die Notching Machine

The machine has the advantages of low production cost, high efficiency, easy installation and operation and convenient maintenance.

When paper protector in the machine, it can run automatically, no need to push it. When the operator is able to operate the machine proficiently, the speed can be adjusted according to the demand. The Max. speed can reach 70m/min. (Must be adjusted by skilled operators).

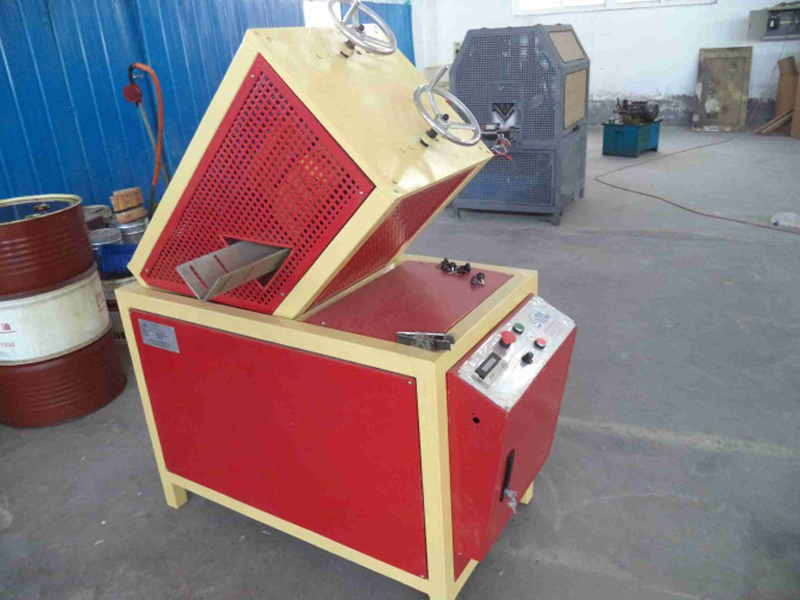

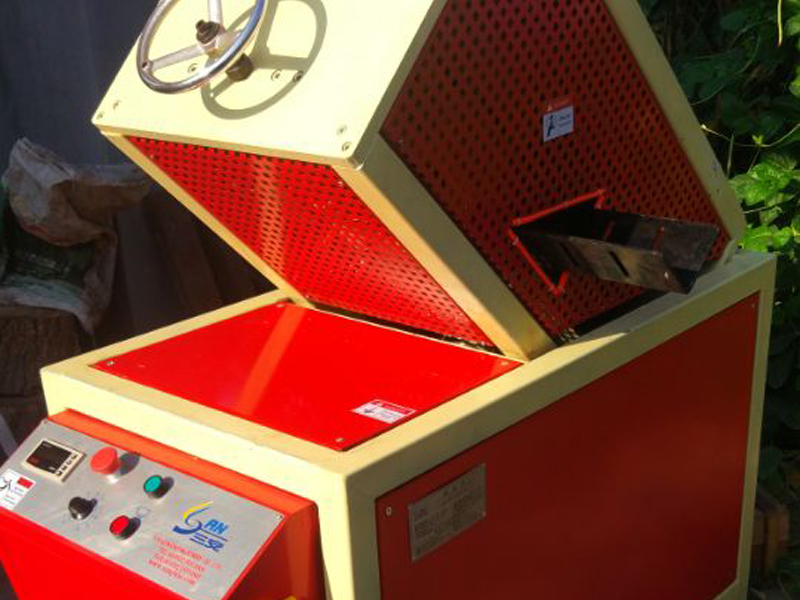

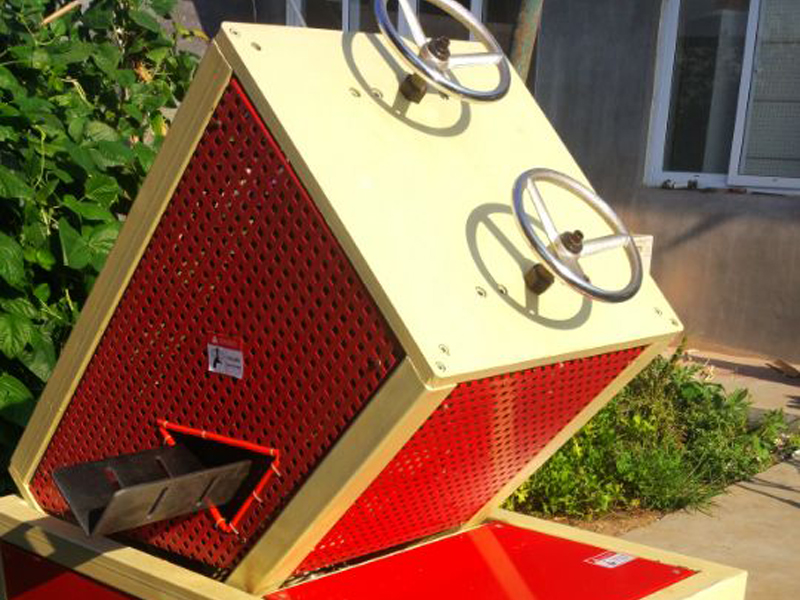

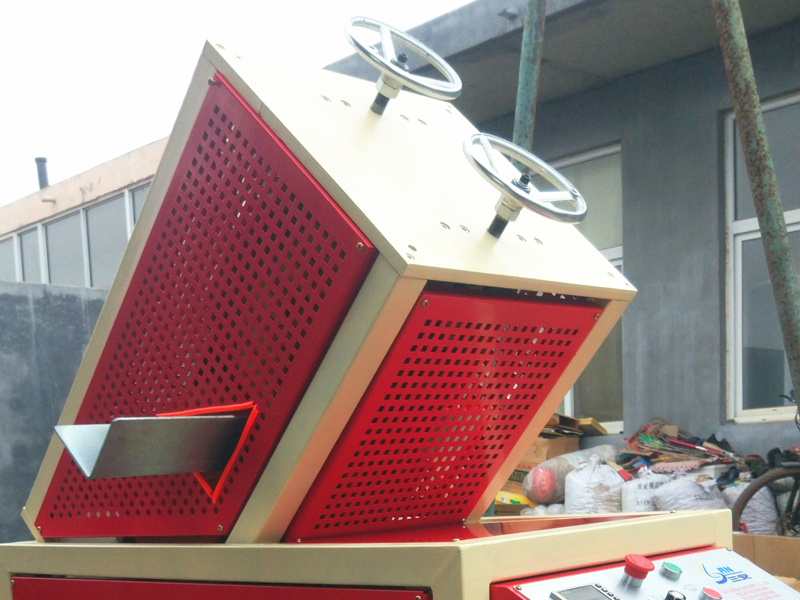

Details of Paper Edge Protector Die Notching Machine
