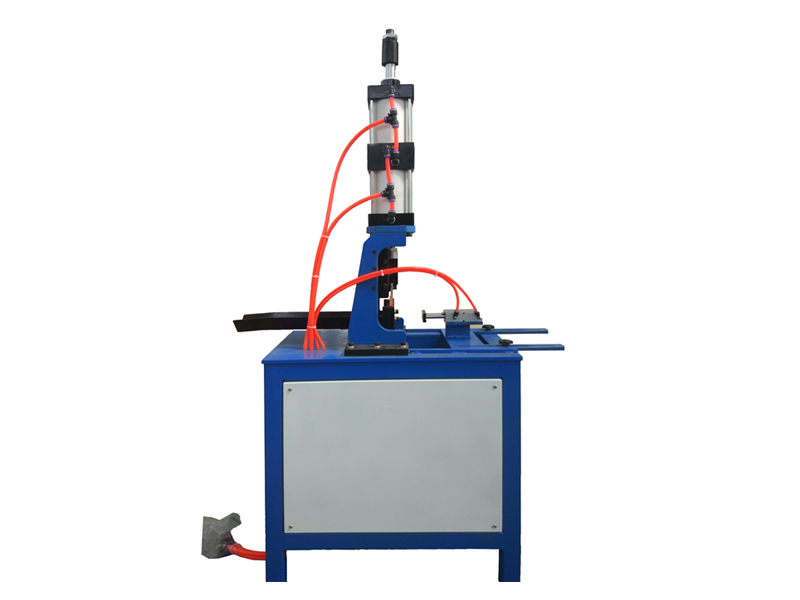

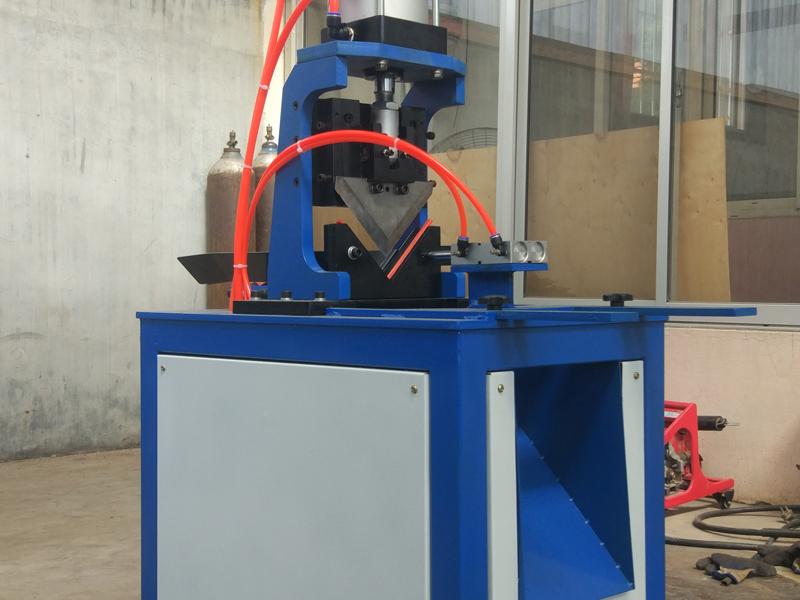

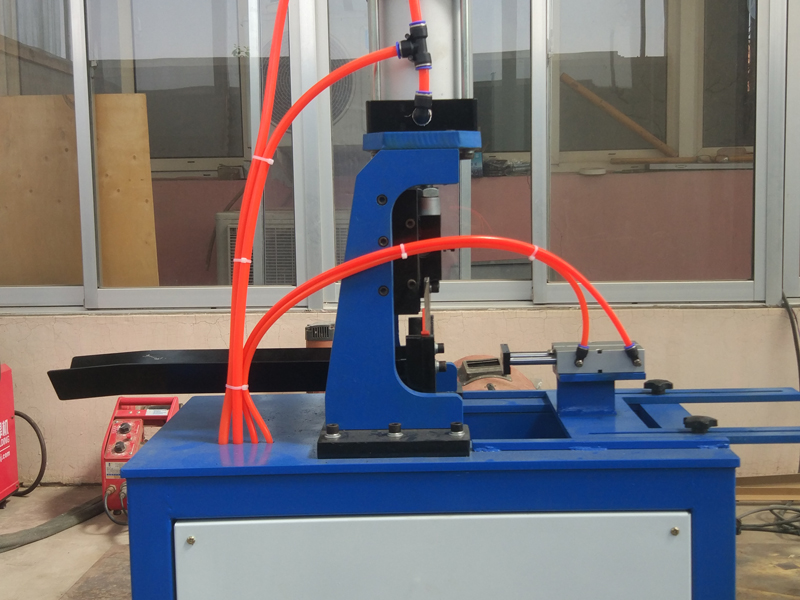

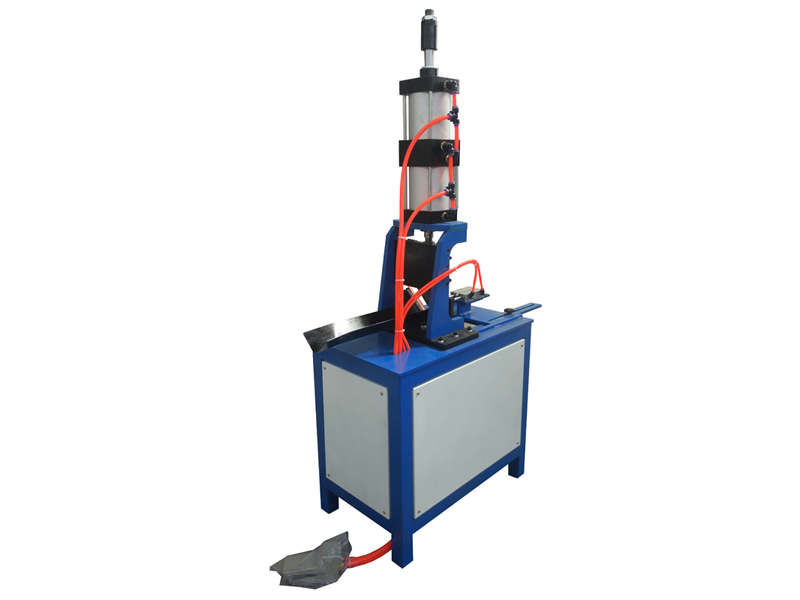

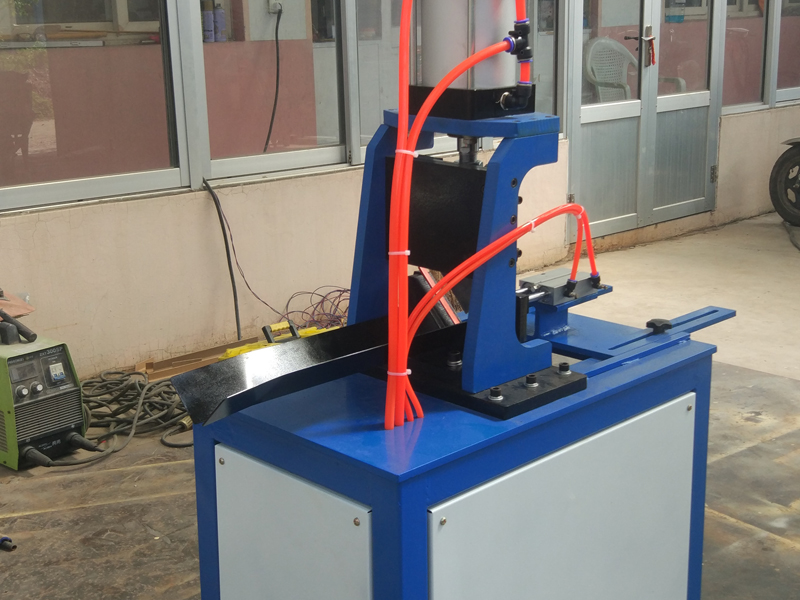

This angle board cutter machine is used to re-cut paper protectors into smaller pieces. Feeding is by hand. Cutting of angle board cutter machine is controlled by foot.
Provide high performance and high speed integrated cutting solutions for them to quickly complete various processes such as full-cutting, half-cutting, skeletonizing, perforating, creasing, marking, and identifying contour cutting.
1) Model: SANCQ-1

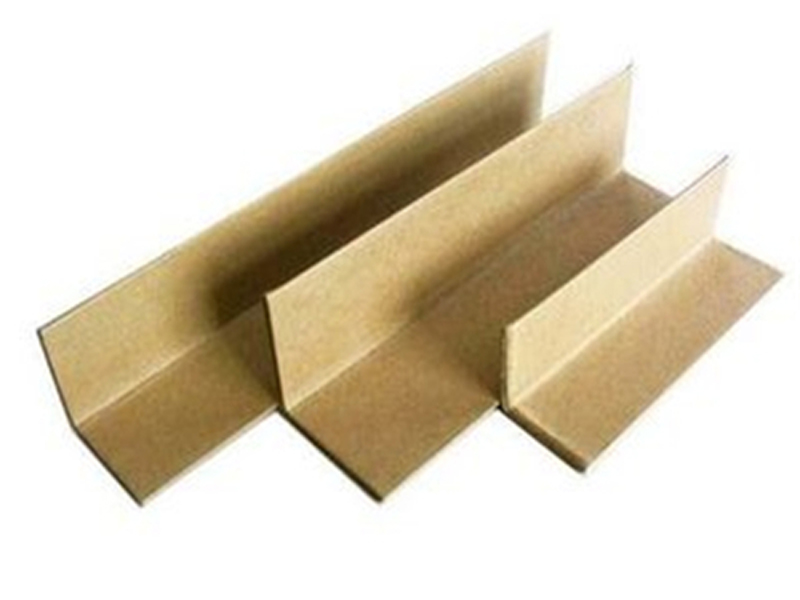

2) Protector leg size: 25-120mm
3) Applicable protector length: 0-500mm
4) Min. cut length: any
5) Cutting method: Pneumatic
6) Max. thickness: 25mm (about 5pcs can be cut together)
7) Production speed: 40cuts/min
8) Dimension: 900*430*1500mm
9) Weight: 80KG
10) Required compressed air: 0.6Mpa, 0.2m3
The angle board cutter machine can cut the edge protector into smaller pieces by foot.
Simple operation, saving time and effort, only needs one single person to be operated.

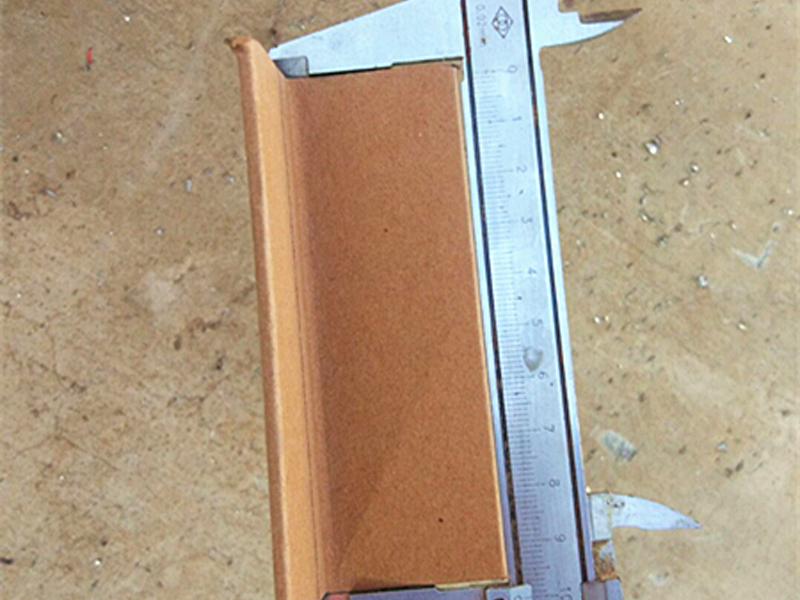

The cut made by the angle board cutter machine is neat and beautiful.
Yes, our corner board cutters are adjustable to accommodate various widths and thicknesses of edge protectors.
Regular maintenance typically involves cleaning, blade sharpening or replacement, and lubrication of moving parts to ensure smooth operation.
Our corner board cutters are built with high-precision components to ensure accuracy, durability, and ease of use. They are equipped with automatic feeding systems, adjustable cutting speeds, and safety features such as blade guards and emergency stop functions. Additionally, they offer minimal downtime due to easy maintenance and quick blade replacements.
