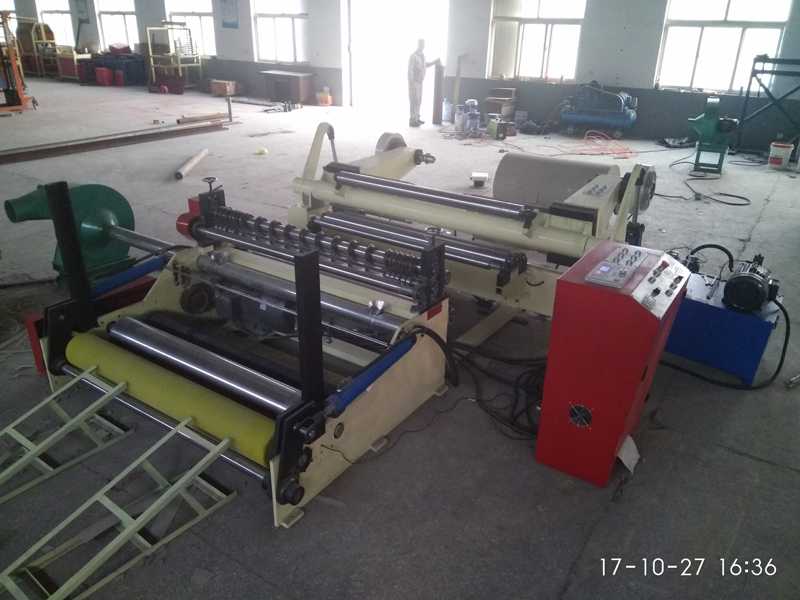

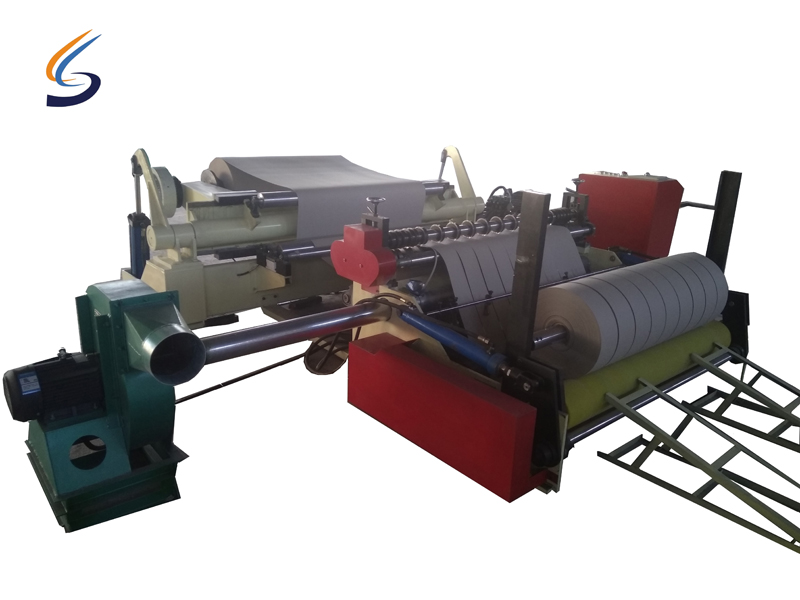

SANSR-1600 paper slitter and rewinder is to slit and rewind jumbo paper roll into small paper rolls with required width, which are for edge protector and paper tube production. With hydraulic paper stand, easy to load paper roll.
SANSR-1600 paper slitter and rewinder is to slit and rewind jumbo paper roll into small paper rolls with required width, which are for edge protector and paper tube production. With hydraulic paper stand, easy to load paper roll.
Model | SANSR-1600 |
Max. width of jumbo roll | 1600mm |
Min. width of jumbo roll | 600mm (min 400mm only for special order) |
Max. diameter of jumbo roll | 1300mm |
Working speed | 0-250m/min |
Quantity of blades | 16 |
Power supply | 10.5KW, 380V, 50HZ |
Weight | 3500KG |
Paper stand | Hydraulic paper stand without spindle. |
Hydraulic paper stand, easy for loading paper roll.
Automatic centering system, small tolerance.
Suspended tension system. Keep the tension steady.
Heavy body with steady performance.
Separate the rolls with Min.1-2mm distance to avoid adhesion.
Single bottom roller rewinding system. Easy for unloading.
A paper roll slitter rewinder machine has diverse applications across various industries. Here are four key points highlighting its uses:
1. Paper and Packaging Industry: The paper roll slitter rewinder is extensively used in the paper and packaging industry to convert large rolls of paper into smaller, more manageable sizes. This is essential for producing packaging materials like labels, stickers, and tape, ensuring they meet specific dimensions and requirements.
2. Printing Industry: In the printing industry, a paper roll slitter rewinder machine plays a crucial role in preparing paper rolls for different printing processes. It ensures that paper rolls are precisely cut to the required width, which is critical for high-quality printing and efficient production workflows.
3. Textile Industry: The jumbo paper roll slitter rewinder machine is also employed in the textile industry for slitting and rewinding fabric rolls, including non-woven materials. This process is vital for producing items like garments, upholstery, and other fabric-based products, ensuring the materials are accurately sized and ready for further processing.
4. Flexible Packaging Industry: For the flexible packaging industry, which deals with materials like plastic films, foils, and laminates, the jumbo paper roll slitter rewinder machine is essential. It enables the conversion of large rolls of flexible packaging materials into smaller rolls suitable for packaging various products, enhancing production efficiency and product quality.
Unwinder: Unrolls the large master roll of paper.
Slitter: Cuts the wide paper web into narrower strips.
Rewinder: Rewinds the slit strips onto smaller cores.
Tension Control System: Maintains consistent tension in the paper web throughout the process.
Splicers: Automatically join the end of one roll to the beginning of the next, ensuring continuous operation.
A paper rewinding machine converts large rolls of paper into smaller, more manageable ones. It works by unwinding a large master roll, slitting it into narrower widths using rotating blades, and then rewinding the slit strips onto smaller cores. This process involves precise control of tension, speed, and alignment to ensure consistent roll quality and minimize waste.
Production Volume: Consider the required output capacity.
Paper Type and Thickness: Select a machine that can handle the specific materials you will be processing.
Roll Width and Diameter: Choose a machine with appropriate size capabilities.
Budget: Determine the available budget and compare prices from different manufacturers.
Maintenance Requirements: Consider the ease of maintenance and the availability of spare parts.
